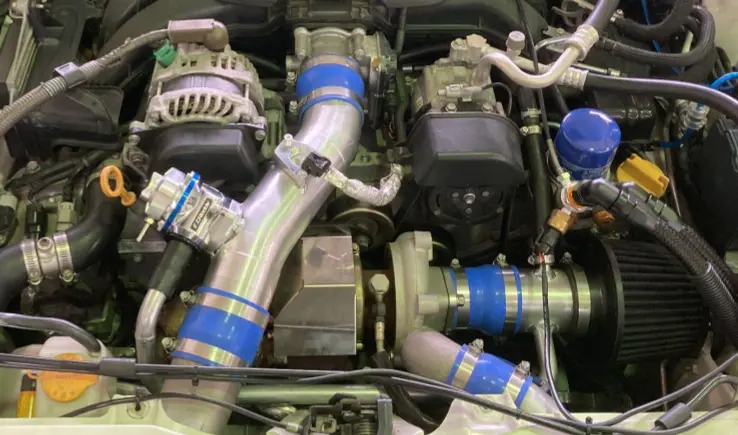

[ZN6/ZC6] GReddy Blow Off Valve FV2 for 86/BRZ Turbine Kit

Product Features

■GReddy Bolt-on Turbo Kit Blow-off valve FV2 adapter kit for 86/BRZ. For vehicles equipped with AIRINX S-70 only.

■By adopting a floating valve structure that does not allow the valve to be pulled up by the negative pressure of the surge tank, it responds well even at low boost and linear throttle work. It is a new generation blow-off valve that also prevents relief at high boost.

specification

・For vehicles with GReddy Bolt-on Turbo Kit T517Z / T518Z / T620Z (*AIRINX S-70 specification)
・For return installation only (return to air cleaner suction pipe)
*Cannot be installed on vehicles with AIRINX-B. (For vehicles with AIRINX-B, please use CODE: 11511217 BFV2-135
.) *The air cleaner that currently comes with the GReddy Bolt-on Turbo Kit T517Z / T518Z / T620Z has been changed to AIRINX S-70.
*To install, you will need the separately sold GReddy Pressure Adapter ZN6/ZC6 to extract pressure from the surge tank. (CODE: 11910101)

Reference work time: 1.0 hours

[Product configuration]
Blow-off valve FV2 main body
, aluminum pipe with dedicated holder
, suction pipe with return
, return pipe
, hose attachment 19φ
, set of short parts

[Compatible models] Toyota 86/Subaru BRZ

Compatible models: DBA-ZN6, 4BA-ZN6/DBA-ZC6, 4BA-ZC6
Engine model:
FA20 Year : 12.04～ / 12.03～

TRUST CODE: 11511218
JAN CODE: 4991995771111
