GReddy TRUST Japan Bolt-on turbo kit, TD04H 15G for Suzuki Swift ZC32S M16A, 11590405
GReddy TRUST Japan Bolt-on turbo kit, TD04H 15G for Suzuki Swift ZC32S M16A, 11590405
Regular price
£4,499.00
Regular price
Sale price
£4,499.00
Taxes included.
Shipping calculated at checkout.
SKU:11590405
Quantity
Couldn't load pickup availability

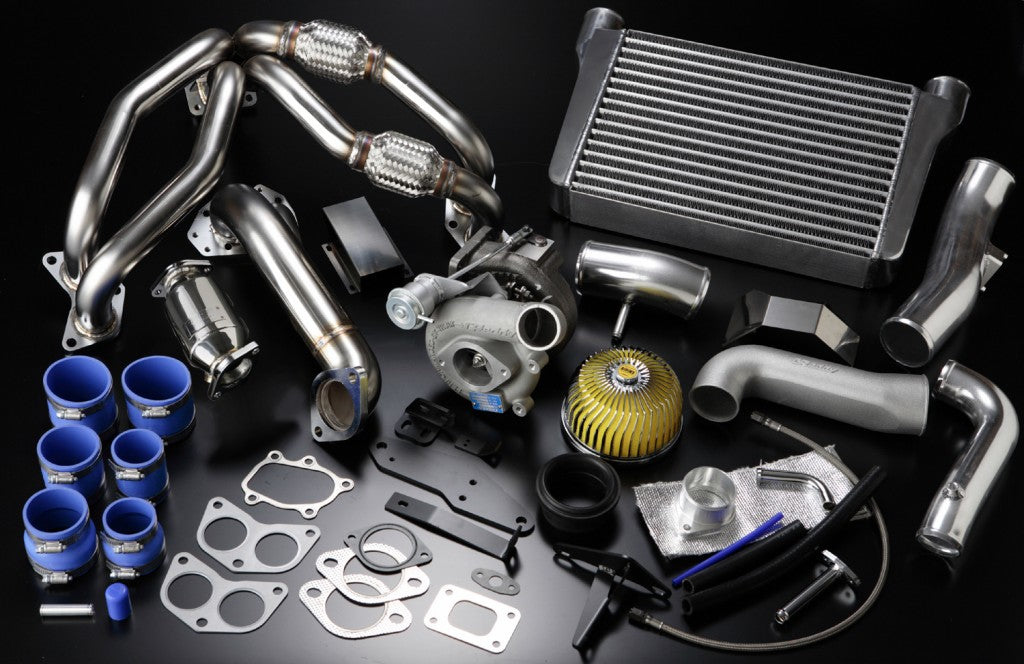

Bolt-on turbo kit for the Suzuki Swift ZC32S with the M16A engine, built around a TD04H 15G turbo with an 8.5 cm² turbine housing. The kit includes a stainless steel exhaust manifold, a TYPE31E intercooler and an Airinx air filter.
Fitment
| Make | Model | Chassis | Engine | Years |
|---|---|---|---|---|
| Suzuki | Swift (6MT only, AT unconfirmed) | ZC32S | M16A | Dec 2011 on |
Specifications
| Part number | 11590405 |
|---|---|
| Made by | TRUST, Japan |
| Turbo | TD04H 15G P380 |
| Turbine housing area | 8.5 cm² |
| Exhaust manifold | Stainless steel |
| Intercooler | TYPE31E |
| Air filter | Airinx |
| Maximum output | 144.2 kW (196 PS) |
| Set boost pressure | 49.0 kPa (0.5 kg/cm²) |
Notes: Manual (6MT) only. Automatic is not confirmed.
Fitment help: call +44 20 3388 8444 or contact us.
