GReddy TRUST Japan Piston kit by OS Giken, 68.1 mm for Suzuki Jimny K6A, 13596600
GReddy TRUST Japan Piston kit by OS Giken, 68.1 mm for Suzuki Jimny K6A, 13596600
Regular price
£603.20
Regular price
Sale price
£603.20
Taxes included.
Shipping calculated at checkout.
SKU:13596600
Quantity
Couldn't load pickup availability

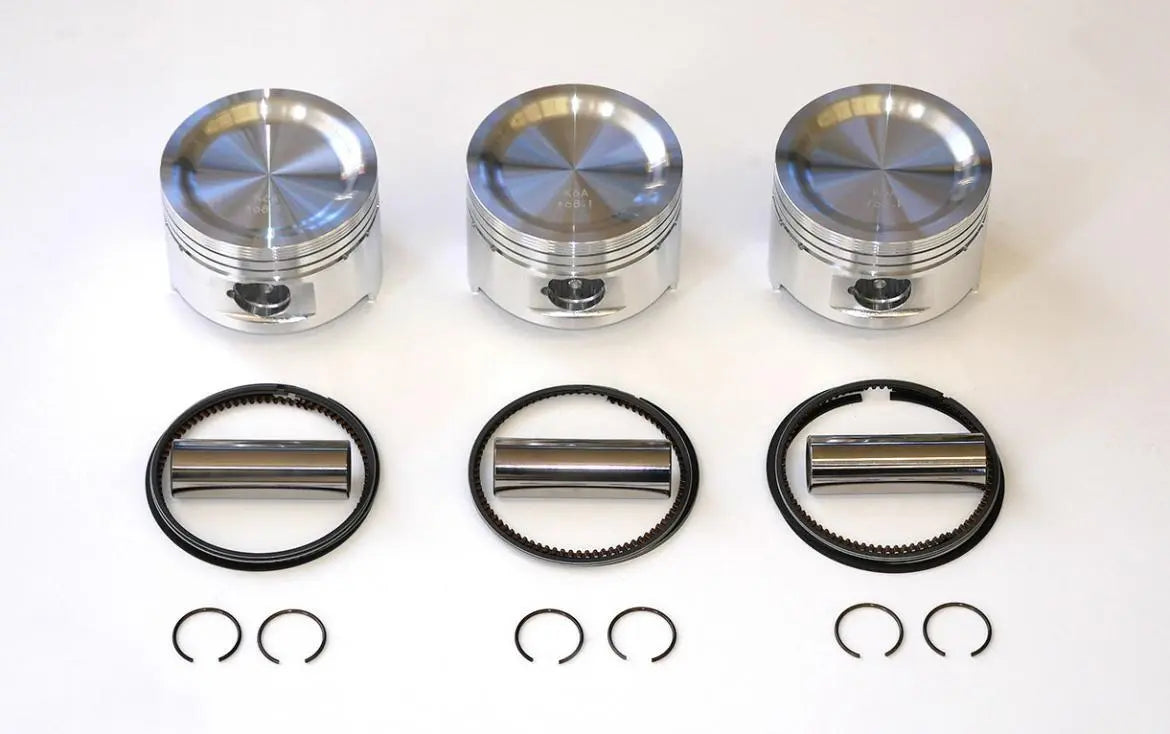

Forged piston kit by OS Giken for the Suzuki K6A turbo engine, 68.1 mm bore size, with the late Jimny crown shape.
Fitment
| Make | Model | Chassis | Engine | Years |
|---|---|---|---|---|
| Suzuki | Jimny (Late model, turbo only. Direct injection engines are not supported) | K6A |
Specifications
| Part number | 13596600 |
|---|---|
| Made by | TRUST, Japan |
| Bore size | 68.1 mm |
| Piston material | High silicon forged aluminium alloy A4032, made in Japan |
| Piston diameter, design value | 68.05 mm |
| Piston weight, design value | 180 g |
| Crown volume, design value | 7.8 cc |
| Ring size, T / S / O | 1.0 / 1.2 / 2.0 mm |
| Total displacement | 659.997 cc |
| Recommended piston clearance | 0.05 mm |
| Supplied with | Pistons, piston rings, piston pins and circlips |
Notes: The crown shape and compression ratio are the same as the original late Jimny. Total displacement stays within the light vehicle limit. The GReddy by OS Giken logo and a serial number are laser marked. Turbo engines only, direct injection engines are not supported.
Fitment help: call +44 20 3388 8444 or contact us.
