GReddy Direct Air Intake GR86(ZN8)/BRZ(ZD8)

Product Features

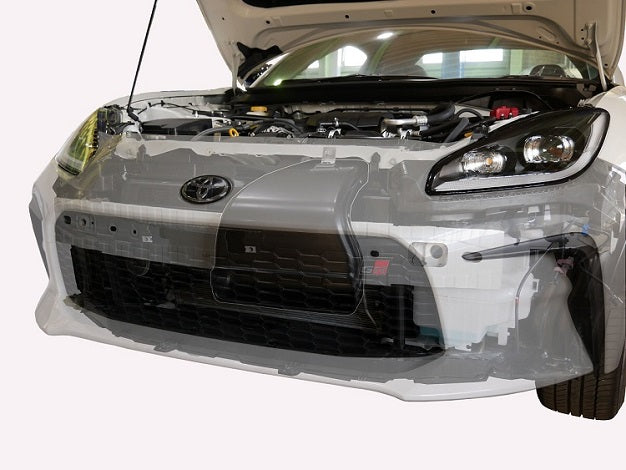

●This is an air intake duct that takes in the wind while driving. (Made of PP: Vacuum molded polypropylene)
　Replaces the genuine air intake duct whose intake port is hidden behind the bumper. It is 300g lighter than our FRP product for the ZN6/ZC6.

●A large duct intake is provided in the radiator grille, creating a duct that actively draws fresh air into the air cleaner.

specification

●Compatible with genuine cleaner boxes.
●Installation requires removal of the front bumper, drilling and machining of the reinforcement hose, and cutting of the energy absorber (styrofoam).

●Package size: W285×D355×H375 mm
●Package weight: 1.2 kg

Estimated work time: about 2 hours

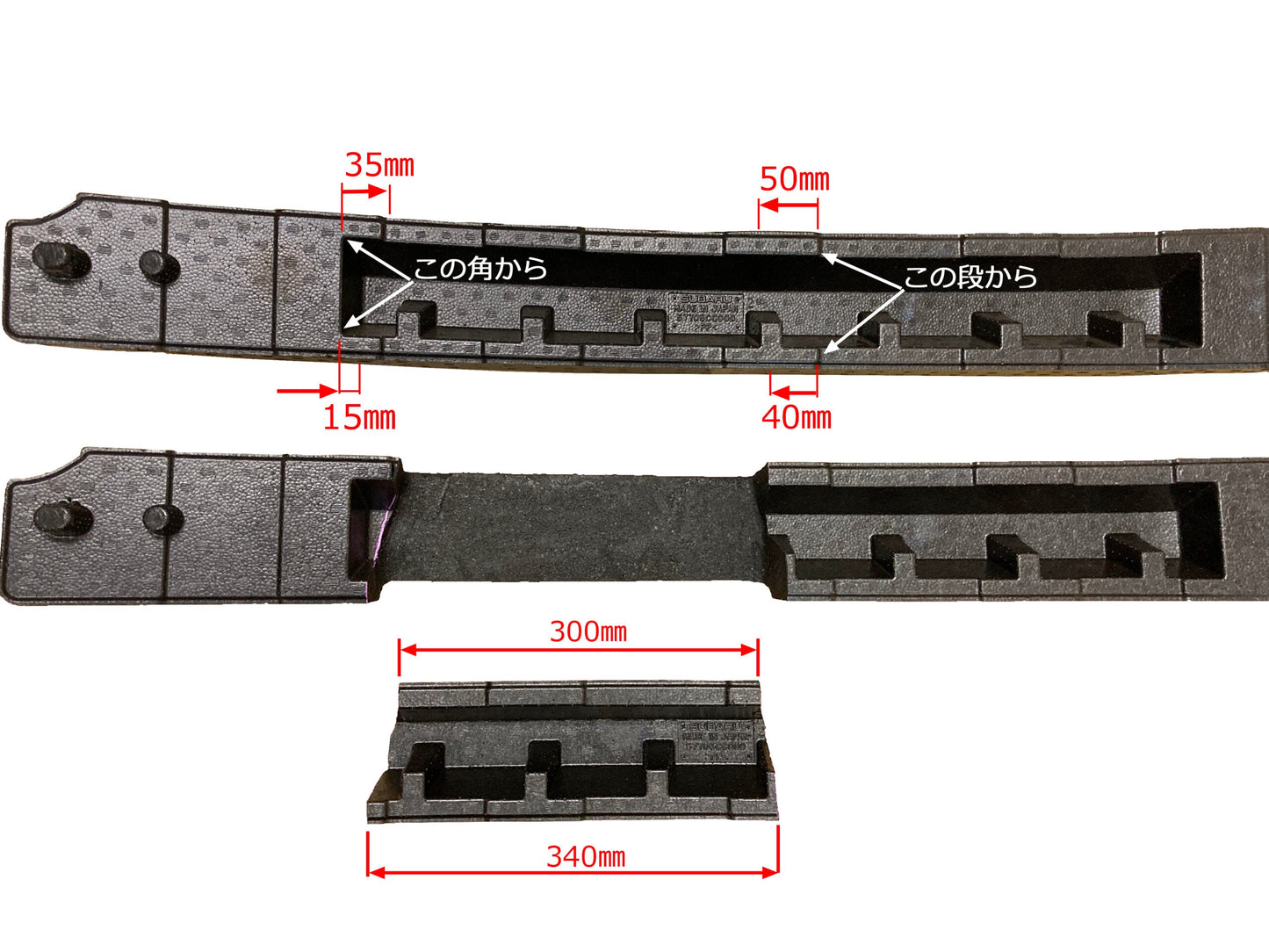

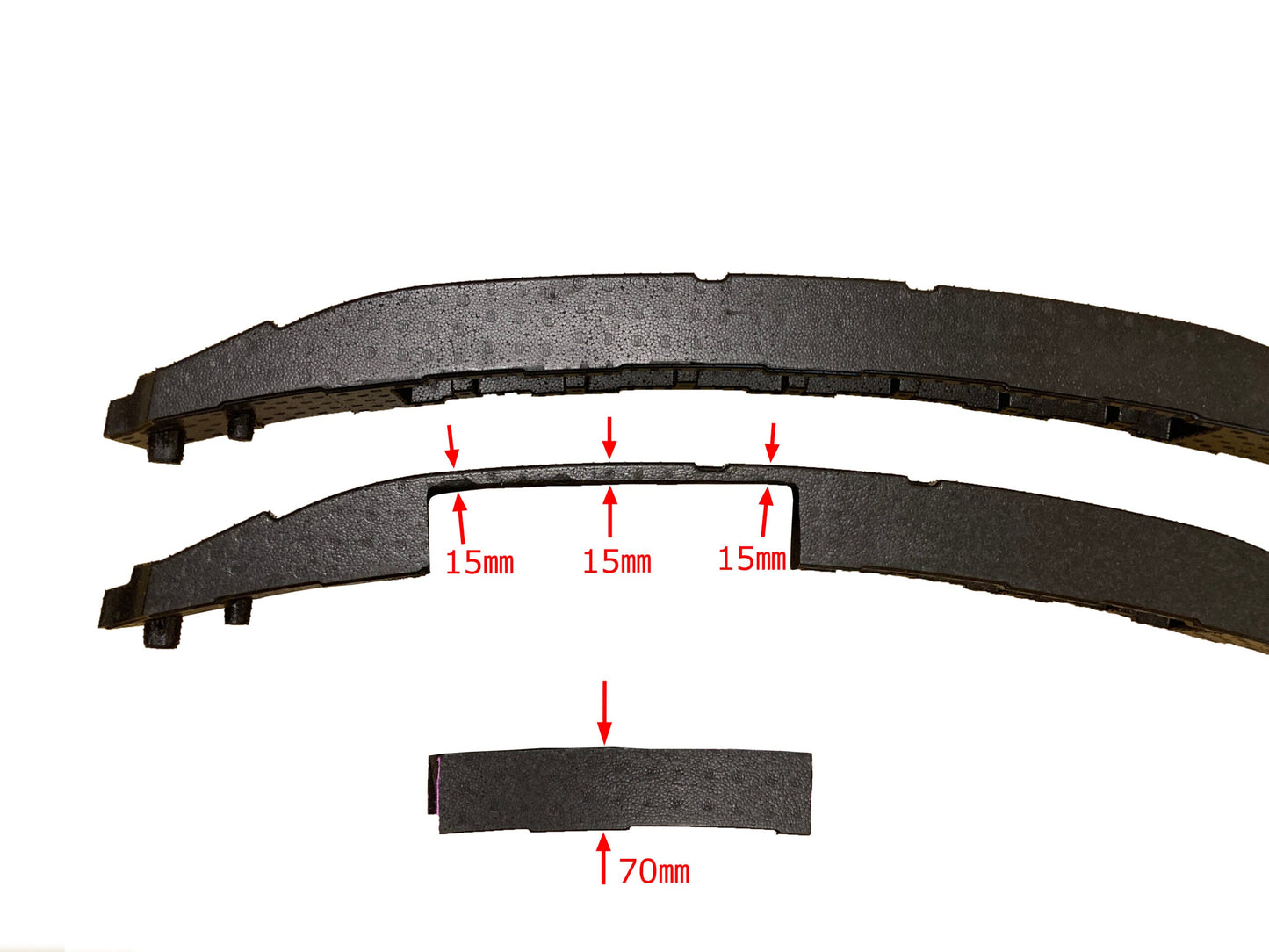

Energy absorber cut dimension diagram

- Cut using the diagram below (with an air saw, saw, cutter, etc.).

*These are approximate dimensions. Cut them smaller and gradually adjust them to fit your vehicle.

Product Configuration

●Air intake duct body
●Bracket
●Short parts set

[Compatible models] Toyota GR86 / Subaru BRZ

Compatible models: 3BA-ZN8/3BA-ZD8
Engine model:
FA24 Year : 2021.10~/2021.08~

TRUST CODE: 12515002
JAN CODE: 4991995807575
