GReddy TRUST Japan METAL GASKET SET RB26DETT (THROTTLE.IN.EX)

Compatible models
Nissan Skyline / Stagea
Vehicle model: BNR32, BCNR33, BNR34, WGNC34
Engine model: RB26DETT
Year: 1989.8-2002.8

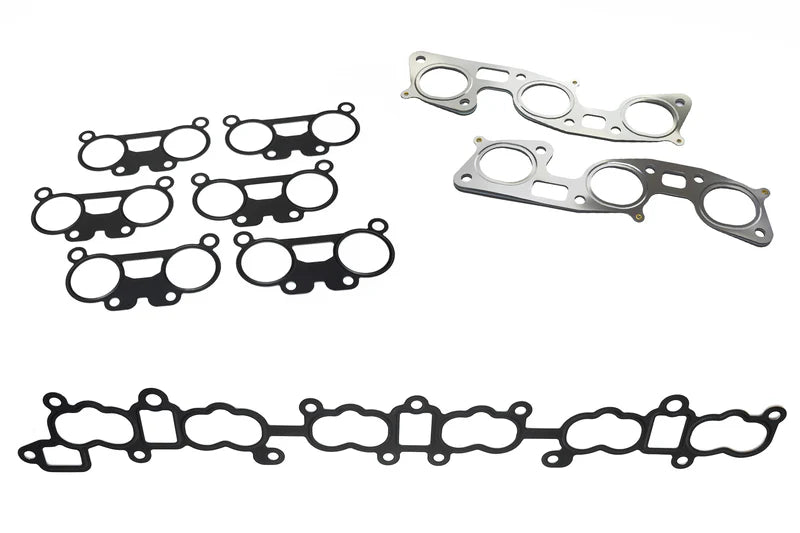

13525650 - GReddy RB26 Metal 3 Gasket Set
                      (ITB Throttle, Intake Manifold, Exhaust manifold Gaskets)

Gasket Specifications:

13525700 - NISSAN RB26 ITB METAL THROTTLE GASKETS (6pc set)
・1-layer bead type
・1 set of 6 sheets
・GReddy logo included
・Fluororubber coating (Perflon)

13525702 – NISSAN RB26 METAL INTAKE MANIFOLD GASKET (1pc)
・Single-layer bead type
・One sheet per unit
・Fluororubber coating (Perflon)

13526100 – NISSAN RB26 METAL EXHAUST MANIFOLD GASKETS (2pc set)
・3-layer bead type
・1 set of 2 sheets
・GReddy logo included

* 13522307-O - Replacement O-rings for GReddy GT-R (13522307) 90mm Throttle Surge Tank (6 O-rings)

* 99900037 - Replacement O-ring gasket for older GReddy cast-Aluminum RB26 Plenum (13522306)

RB26 GREDDY METAL HEAD GASKETS
13521302 – NISSAN RB26 METAL HEAD GASKET - Bore:87.0mm, Thickness: 1.2mm
13521303 – NISSAN RB26 METAL HEAD GASKET - Bore:87.0mm, Thickness: 1.4mm

13521304 – NISSAN RB26 METAL HEAD GASKET - Bore:88.0mm, Thickness: 1.2mm
13521305 – NISSAN RB26 METAL HEAD GASKET - Bore:88.0mm, Thickness: 1.4mm

GReddy Metal Head Gasket for RB26
Ensures high surface pressure and prevents combustion gas pressure from escaping.

Product features
High surface pressure is ensured by using a grommet type. Prevents combustion gas pressure from escaping due to high boost.

Specification

■Grommet type metal head gasket
■Bore diameter φ87.0 (piston diameter φ86.0 to 86.5), φ88.0 (piston diameter φ87.0 to 87.5)
■Thickness 2 types: 1.2 mm and 1.4 mm
