[VAB] GReddy Oil Cooler Kit Standard MC After Inner Fender 13 Sections Circuit Spec

Product Features

■As the second edition of the VAB oil cooler kit, a circuit-spec inner fender type has been added.

■By installing the oil cooler core inside the inner fender, the cooling air to the radiator is not blocked, and stable cooling performance
　is achieved even under harsh conditions such as circuit driving.

■The oil lines around the exhaust manifold use horizontally opposed steel pipes designed specifically for safety, preventing problems caused by heat.

■ Comes with an inlet duct (air guide plate) to efficiently guide the airflow to the oil cooler core, and an outlet net to discharge the air that has passed through the core to the tire house.

　*The front mudguard needs to be modified to install the outlet net.

Oil Line Pipe

The oil cooler kit has a structure in which a block is placed at the oil element mounting area to extract oil.

However, the oil outlet of the EJ engine is surrounded by the exhaust manifold, and the layout is very susceptible to the effects of heat. In the worst case scenario, the mesh hose in the standard kit could break, which we felt was very dangerous.

Therefore, by using metal pipes for some parts instead of regular mesh hoses, we developed a kit that can be used safely even under the harsh conditions of circuit driving.

specification

Core location: Inside the right inner fender
Thermostat: Built-in (operating temperature 75℃ to 82℃ ±2℃)
Hose: Nylon mesh hose
Fittings: Trust original fittings (black anodized finish)

*Removal of resonator is required.
*Cannot be installed together with GReddy intercooler.
*Processing of under cover, mudguard, and bracket-front center LWR is required.

Reference work time: 5.0 hours

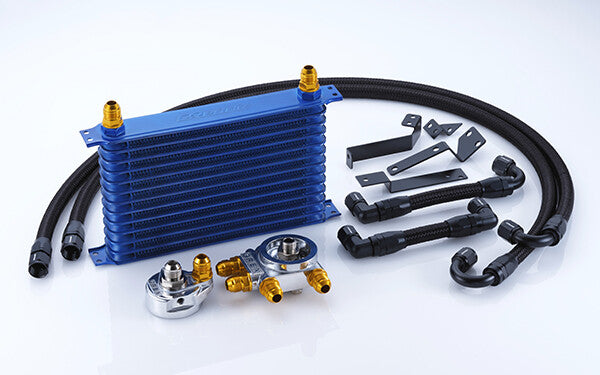

[Product configuration]
Core body (13 stages)
Hose (770mm / 540mm)
Fitting (90°/45°/45°/180°)
Oil block (TYPE-E)
Inlet duct (air guide plate)
Outlet net
Oil line extraction pipe set
Dedicated stay set

<Compatibility with our own products>

[Compatible models] SUBARU WRX STI

Compatible Model: VAB
Engine Model:
EJ20 Year : 2017.06-2020.04

TRUST CODE: 12064610
JAN CODE: 4991995635109
