[VAB] GReddy Oil Cooler Kit Standard MC Front Inner Fender 10 Section Circuit Spec

Product Features

・Circuit spec inner fender type for Applied A to C types has been added.

- By installing the oil cooler core inside the inner fender, the cooling air flow to the radiator
　is not blocked, providing stable cooling performance even under harsh conditions such as circuit driving.

　- The oil lines around the exhaust manifold use horizontally opposed steel pipes designed specifically for safety , preventing problems caused by heat.

　・Includes an inlet duct (air guide plate) to efficiently guide the airflow to the oil cooler core, and an outlet net to discharge the air that has passed through the core to the wheel housing.
*The front mudguard needs to be modified to install the outlet net.

Oil Line Pipe

The oil cooler kit has a structure in which a block is placed at the oil element mounting area to extract oil.

However, the oil outlet of the EJ engine is surrounded by the exhaust manifold, and the layout is very susceptible to the effects of heat. In the worst case scenario, the mesh hose in the standard kit could break, which we felt was very dangerous.

Therefore, by using metal pipes for some parts instead of regular mesh hoses, we developed a kit that can be used safely even under the harsh conditions of circuit driving.

specification

・Core position: Inside the right inner fender
・Thermostat: Built-in (operating temperature 75℃～82℃ ±2℃)
・Hose: Nylon mesh hose
・Fitting: Trust original fitting (black anodized finish)
*Resonator must be removed.
*Cannot be installed together with GReddy intercooler.
*Undercover, mudguard, and bracket - front center LWR processing required.

Reference work time: 5.0 hours

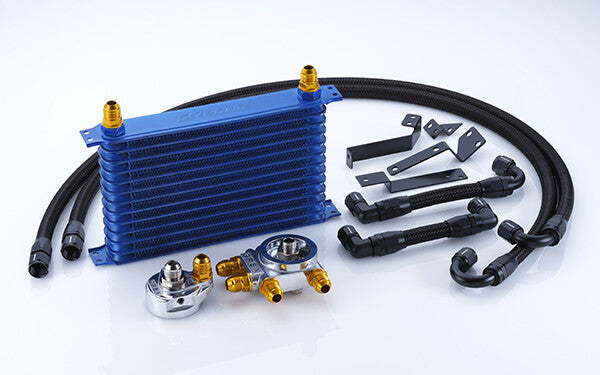

[Product configuration]
Core body (10 stages)
Hose (405mm / 305mm)
Fitting (straight / 90° / 120°)
Oil block (TYPE-E)
Inlet duct (air guide plate)
Outlet net
Oil line extraction pipe set
Dedicated stay set

[Compatibility with our products]

[Compatible models] SUBARU WRX STI

Compatible models: VAB
Engine model:
EJ20 Year : 2014.08-2017.05

TRUST CODE: 12064611
JAN CODE: 4991995635116
