GReddy TRUST Japan Oil cooler kit, oil element relocation type, 13 row for Toyota Mark II JZX90 1JZ-GTE, 12014408
GReddy TRUST Japan Oil cooler kit, oil element relocation type, 13 row for Toyota Mark II JZX90 1JZ-GTE, 12014408
Regular price
£885.08
Regular price
Sale price
£885.08
Taxes included.
Shipping calculated at checkout.
SKU:12014408
Quantity
Couldn't load pickup availability

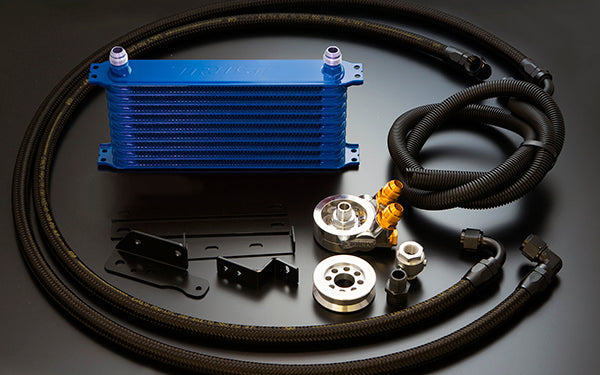

Oil cooler kit of the oil element relocation type for the Toyota Mark II JZX90 with the 1JZ-GTE engine. It has a 13 row core (NS1310G) with a built-in thermostat.
Fitment
| Make | Model | Chassis | Engine | Years |
|---|---|---|---|---|
| Toyota | Mark II | JZX90 | 1JZ-GTE | Oct 1992 to Sep 1996 |
Specifications
| Part number | 12014408 |
|---|---|
| Made by | TRUST, Japan |
| Type | Oil element relocation, 13 row |
| Core and thermostat | NS1310G, thermostat built into block |
| Core position | In front of the radiator |
| Element position | Air conditioning compressor side |
| Centre bolt size | 3/4-16UNF |
Notes: Cannot be fitted together with the GReddy intercooler kit. On cars built from October 1992 to October 1993 the oil filter bracket is different and the water line needs processing.
Fitment help: call +44 20 3388 8444 or contact us.
