Standard type oil cooler kit for the Toyota GR Yaris GXPA16 with the G16E-GTS engine. The 10 row core mounts in front of the radiator and has a built-in thermostat.
Fitment
Make
Model
Chassis
Engine
Years
Toyota
GR Yaris
GXPA16
G16E-GTS
Specifications
Part number
12014640
Made by
TRUST, Japan
Type
Standard, 10 row
Core
10 row, clear blue paint

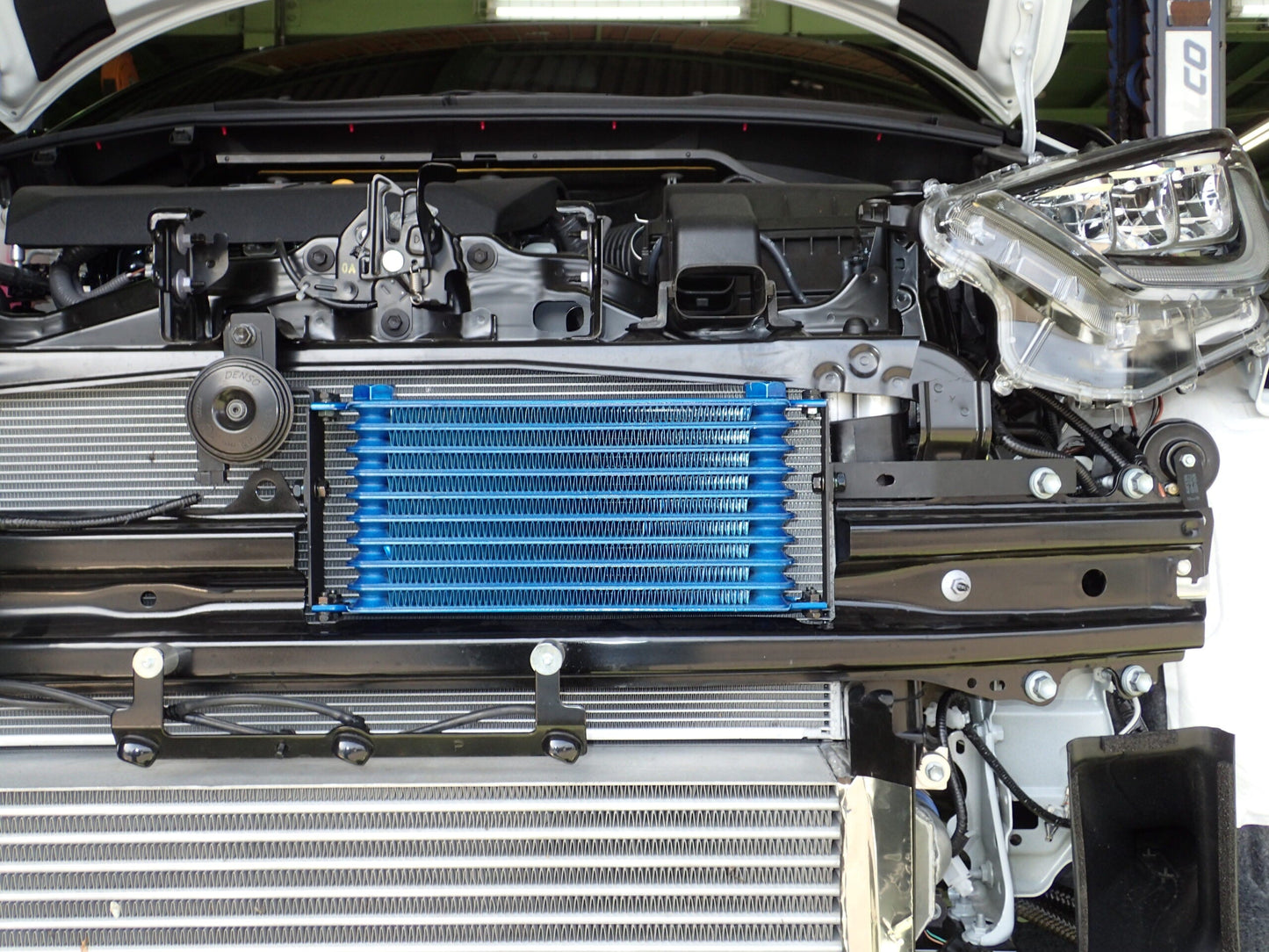

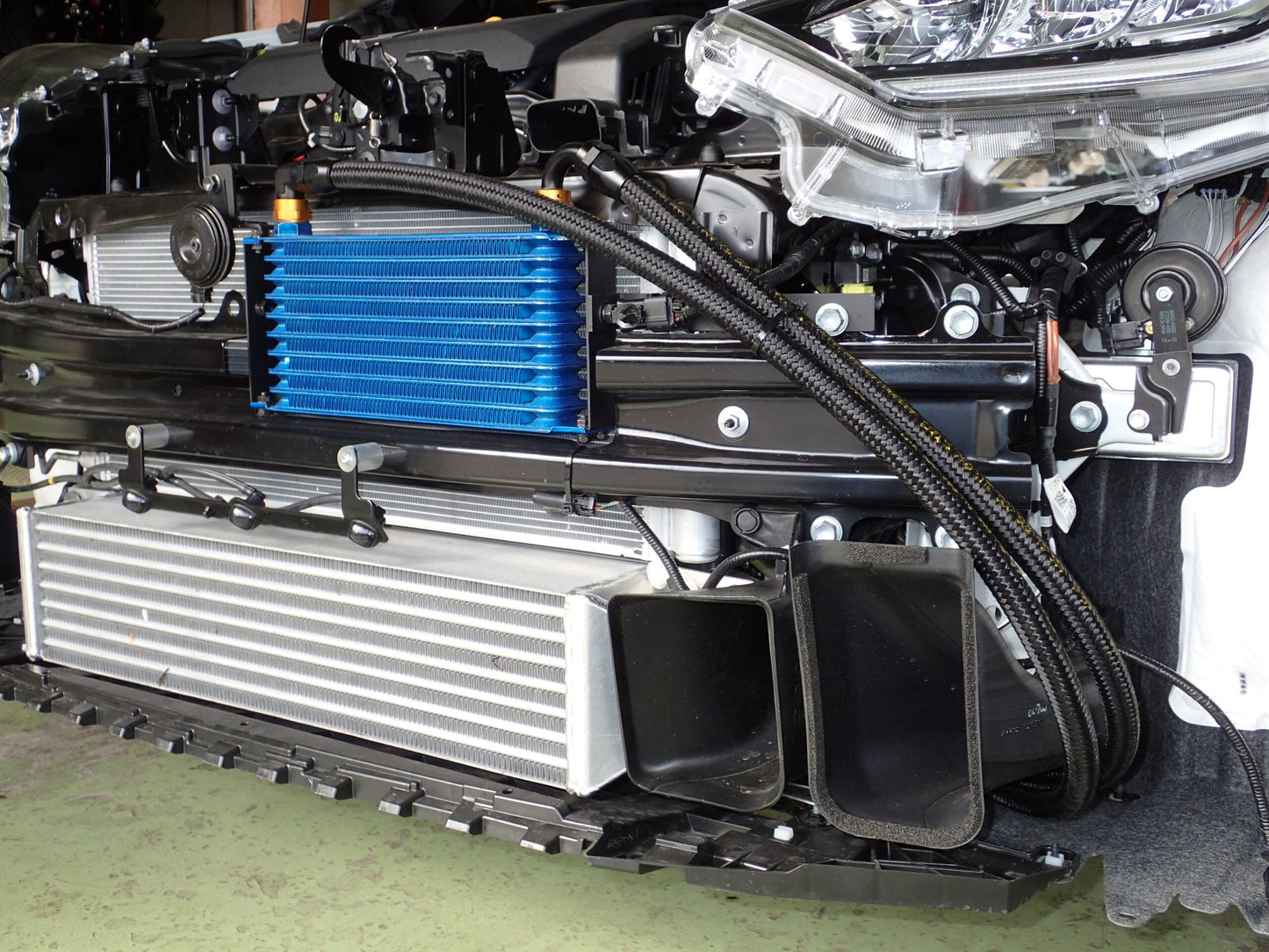

Core position
In front of the radiator
Thermostat operating temperature
75 to 82 °C, plus or minus 2 °C
Hoses
Earl's Pro Lite 350, #10
Hose lengths
1,520 mm / 1,260 mm
Fittings
GReddy direct fitting, 30 / 30 / 90 / 120 degrees
Oil block
TYPE-E
Reference fitting time
5.0 hours

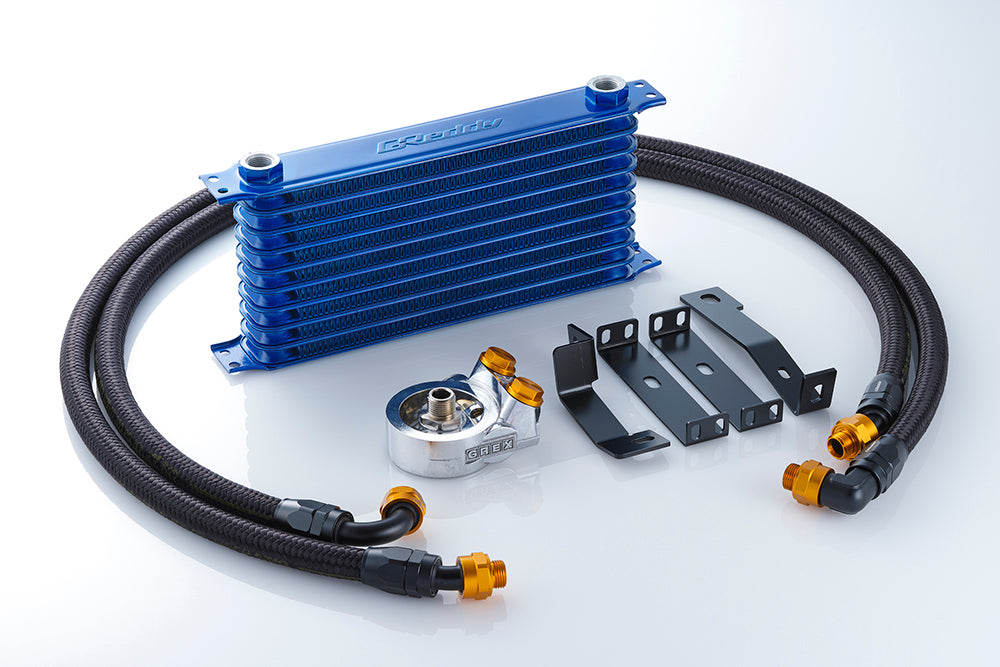

Notes: The kit contains the core, two hoses, fittings, the TYPE-E oil block and a set of dedicated stays. The source mentions reinforcement cut processing and processing of the radiator upper air guide plate.
