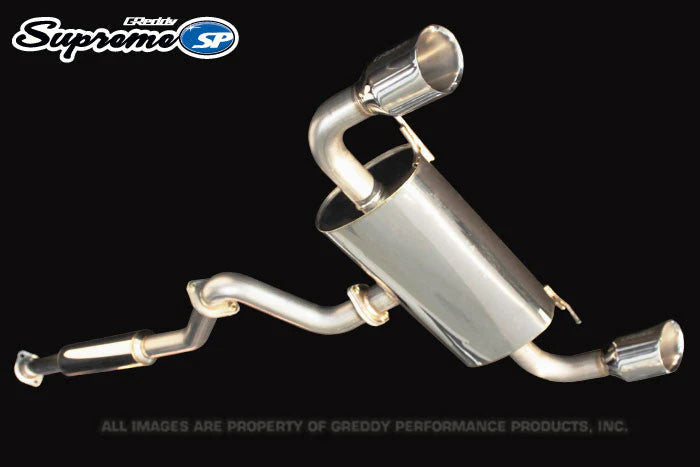

Cat-back exhaust with 63.5 mm piping, a horizontally mounted three-section muffler and dual 115 mm tips, for the Scion FR-S / Toyota GT86 and Subaru BRZ.
Large horizontally mounted three-section muffler with a tuned internal Y-pipe

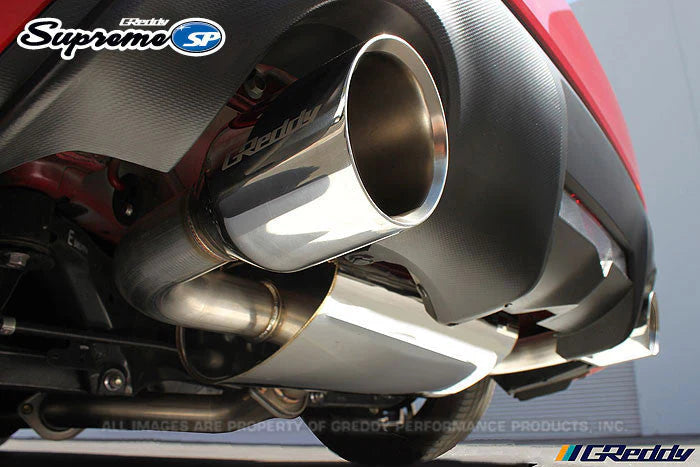

Dual slant-cut double-wall tips in the factory bumper outlets
Straight-through resonator in the mid-pipe
Fitment
Make
Model
Chassis
Engine
Years
Toyota
GT86 (Scion FR-S in the USA)
ZN6
4U-GSE (FA20)
2012 to 2016
Subaru
BRZ
ZC6
FA20
2012 to 2016
Toyota
GT86 (Late model (kouki) 86)
ZN6
4U-GSE (FA20)
2017 on
Subaru
BRZ (Late model (kouki))
ZC6
FA20
2017 to 2020
Specifications
Part number
10118206
Made by
GReddy Performance Parts, USA
Type
Cat-back, horizontally mounted muffler with dual tips
Pieces
3
Piping
63.5 mm
Tips
2 x 115 mm
Gaskets
2.5 inch oval, 2 included
Resonator
Yes
Weight
15.8 kg
Noise level (SAE J1169)
Left 82 / right 83 dB(A) at 4,500 rpm
Notes: Uses the factory-type doughnut gasket and spring bolts for the mid-pipe, so it fits both the 2012 to 2016 cars and the 2017 on late-model cars. Keeps the factory catalytic converter and front pipe. Test results may vary from car to car.
