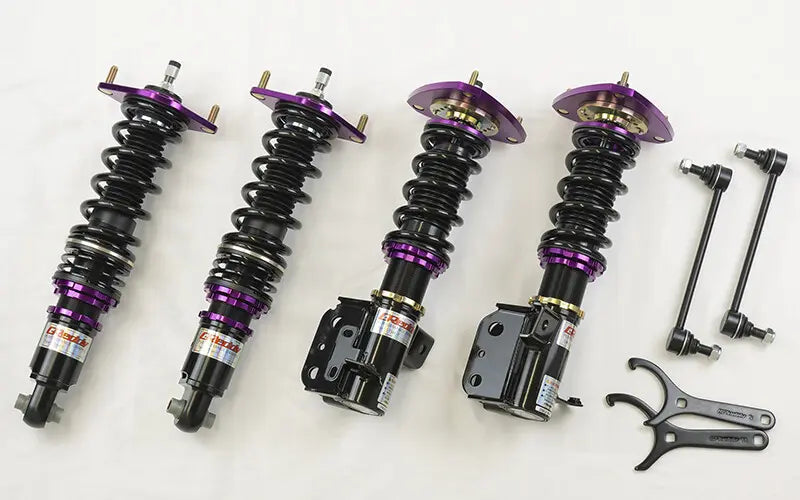

GReddy TRUST Japan Performance Damper Type-S standard rate TY-PD-008 for Toyota GR86 ZN8 and Subaru BRZ ZD8, 14012217
GReddy TRUST Japan Performance Damper Type-S standard rate TY-PD-008 for Toyota GR86 ZN8 and Subaru BRZ ZD8, 14012217
Regular price
£1,568.32
Regular price
Sale price
£1,568.32
Taxes included.
Shipping calculated at checkout.
SKU:14012217
Quantity
Couldn't load pickup availability
Adjustable standard-rate suspension kit for the Toyota GR86 (ZN8) and Subaru BRZ (ZD8), with 32-step damping adjustment front and rear.
Fitment
| Make | Model | Chassis | Engine | Years |
|---|---|---|---|---|
| Toyota | GR86 | ZN8 | ||
| Subaru | BRZ | ZD8 | ||
| Toyota | GT86 (86 in Japan; also listed in the description) | ZN6 | ||
| Subaru | BRZ (Also listed in the description) | ZC6 |
Specifications
| Part number | 14012217 |
|---|---|
| Made by | TRUST, Japan |
| Rate | Standard rate |
| Damping adjustment | 32 steps, front and rear |
| Length adjustment | Full, front and rear |
| Upper mount, front | Upright / pillow adjustable |
| Upper mount, rear | Upright / reinforced rubber |
| Recommended ride height front / rear | -20 / -25 mm |
| Height adjustable range, front | -71 to 0 mm |
| Height adjustable range, rear | -30 to 0 mm |
| Front spring | 6.0K, L150 |
| Rear spring | 6.0K, L180 + helper |
Notes: The standard rate is described as aimed at street driving and sporty circuit driving. Developed with racing driver Takamitsu Matsui, with recommended damping positions provided for different driving scenarios. Specifications shown are for the ZN8 / ZD8; the description also lists the 86 (ZN6) and BRZ (ZC6).
Fitment help: call +44 20 3388 8444 or contact us.
