GReddy TRUST Japan POWER EXTREME R LIGHT-S FOR TOYOTA GR86 ZN8 SUBARU BRZ ZD8 10113250
GReddy TRUST Japan POWER EXTREME R LIGHT-S FOR TOYOTA GR86 ZN8 SUBARU BRZ ZD8 10113250
SKU: 10113250Regular price
£1,492.92
Regular price
Sale price
£1,492.92
Unit price
/
per
GReddy Power Extreme R Light-S for ZN8/ZD8
Muffler developed for the "TOYOTA GAZOO Racing GR86/BRZ CUP"
Product Features
TOYOTA GAZOO Racing GR86/BRZ CUP certified parts (TRA approval number: TRA220318-050)
●It is a one-make race certified product, but
also meets safety standards for use on public roads. ●It is a product designed with an emphasis on use in races, with an emphasis on improving power output, as well as reducing weight and improving road clearance.
The muffler layout is single-outlet, and a dedicated silencer is used instead of a resonator to silence the sound, achieving both high output and lightweight design.
The connection between the center pipe and the rear muffler is a plug-in type, which further reduces weight and ensures road clearance.

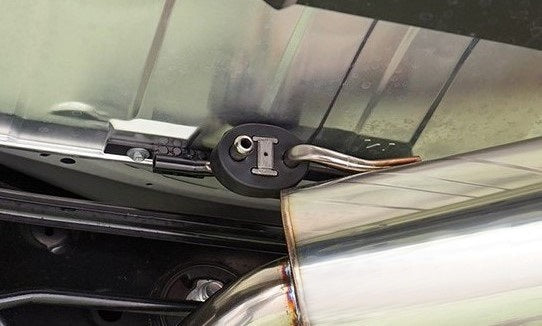

By inserting a special collar into the rear piece muffler hanger, excessive movement is restricted.
Even when sudden lateral G forces occur, it prevents interference with each part and ensures stable driving.
Note: A wire lock is required for use with the "TOYOTA GAZOO Racing GR86/BRZ Cup 2022" in the hole in the center of the block.
This is the highest output model in the GReddy muffler series, and is an all-Tig welded specification with a straight shape and no constrictions on the exhaust pipe.
No restriction: The pipe diameter is uniform except for the tail end, resulting in an internal structure with little exhaust resistance.
Tig welding: An arc welding method that provides high performance, high quality and a beautiful finish.
specification
- Compliance with noise regulations in fiscal 2010
- Minimum ground clearance: 127mm [Rear member lower pipe section]
- Fender height: front right 668mm, front left 670mm, rear right 678mm, rear left 674mm
- Division/aperture: 2 divisions/60φ
- Replacement part: After the second catalyst
- Tail shape: 90φ S/S titanium heat gradation
- Material: SUS + titanium tail
Reference work time: 1.5 hours
Product Configuration
- Muffler body
- Dedicated stay
- Special color
- band
Nearby exhaust noise
genuine | TRUST | |||||||||||||||
Nearby exhaust noise
|
5250rpm(MT) | 83dB | 88dB | |||||||||||||
5250rpm(AT) | – | 89dB | ||||||||||||||
Immediately after starting the engine (when cold)
↓ Before warming up |
1700rpm | 74dB | 85dB | |||||||||||||
1500rpm | 66dB | 74dB | ||||||||||||||
1000rpm | 64dB | 68dB | ||||||||||||||
Idling noise after warming up | 650rpm | 58dB | 65dB | |||||||||||||
Idle after warming up
|
650rpm to 2500rpm | 77dB | 88dB | |||||||||||||
650rpm to 5000rpm | 88dB | 93dB | ||||||||||||||
2000~4000rpm | 83dB | 93dB | ||||||||||||||
weight | 16.4kg | 12.3kg |
[Compatible models] TOYOTA GR86 / SUBARU BRZ
Vehicle model: 3BA-ZN8 / 3BA-ZD8
Engine model:
FA24 Year : 2021.10~ / 2021.08~
TRUST CODE: 10113250
JAN CODE: 4991995920038
