GReddy TRUST Japan SENSOR TERMINAL FOR 12401178
GReddy TRUST Japan SENSOR TERMINAL FOR 12401178SKU: 12401178
Sale Sold out
Regular price £18.85
Regular priceUnit price per

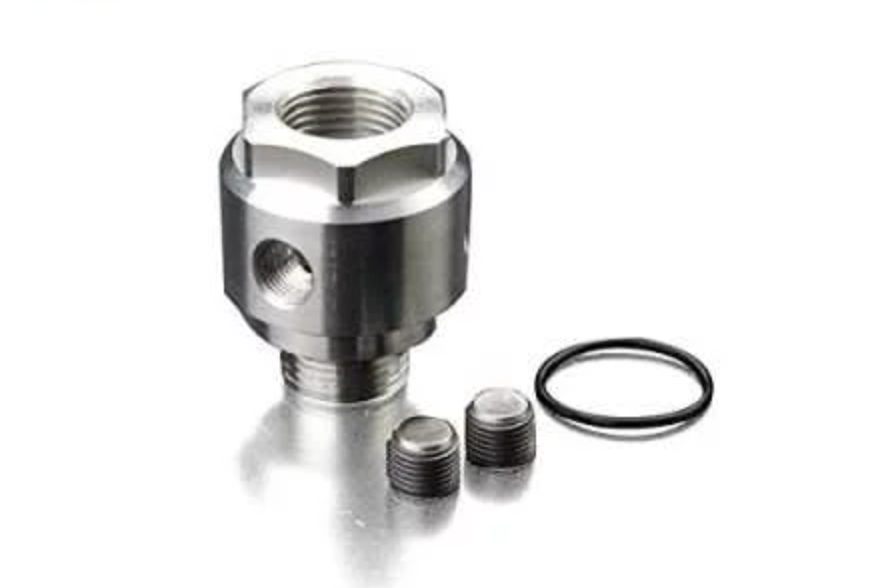

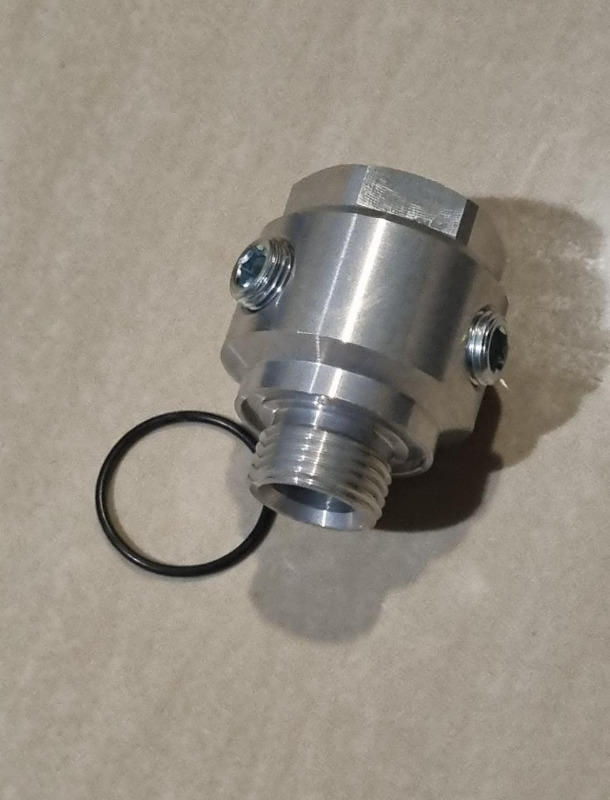

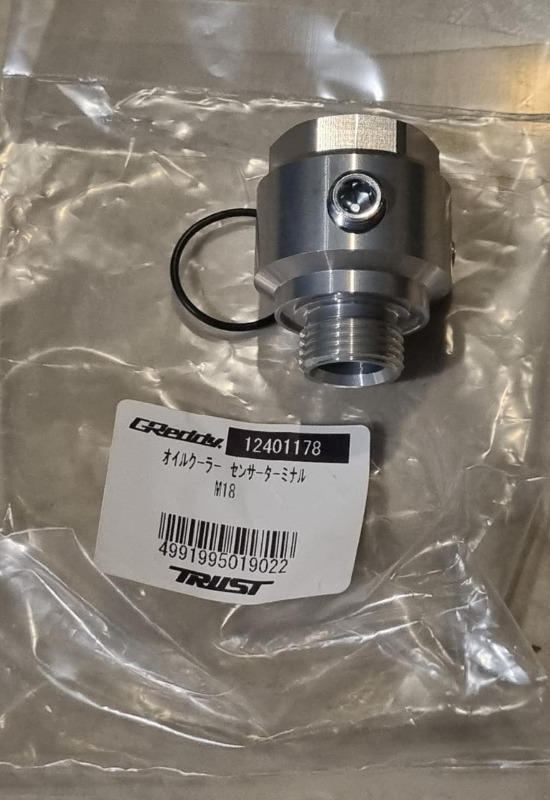

General oil sensor pick-up adapter that is suitable for Greddy oil block's M18 screwed hole
3 pieces of 1 / 8PT sensor holes are located in the body for 120degree angle distance Mainly it is effective if there's no space except around main body of oil line.
To enlarge inner diameter of sensor hole, even temperature sensor is projected into oil pipe line, it is designed to obtain sufficient cross section area.
The length of sensor is suitable within 30mm long that includes screwed area. (The sensor that has protuberance at the tip of 1 / 8PT is not possible to attach 2 sensors)
In terms of the feature of the products, screw fitting angle can not be adjusted. To use this product, be careful to assure sufficient clearance for outer circumference.
Images are for illustration purpose only. Actual product may vary.
