GReddy TRUST Japan T/K JZX100 TD06SH 20RX ACT
GReddy TRUST Japan T/K JZX100 TD06SH 20RX ACT
SKU: 11510064Couldn't load pickup availability

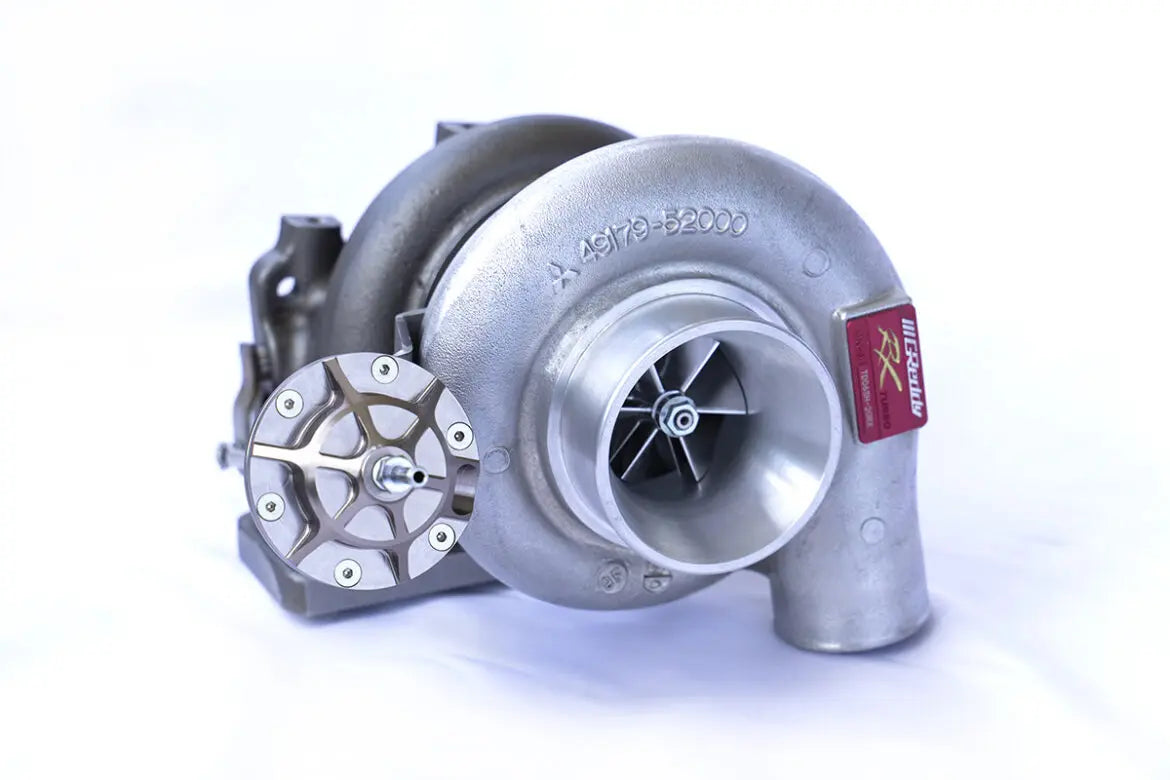

GReddy Turbine Kit Actuator Type JZX100
Product Features
・TD06SH20RX is now available as an actuator-type turbine kit for the JZX100. Special piping is included.
・By adopting the genuine shape exhaust housing, it is possible to bolt it onto the genuine exhaust manifold and outlet.
- The compressor cover uses an S-type cover, the same type as the wastegate specification, with an emphasis on intake efficiency.
Precautions when using TD06SH-20RX
*The air cleaner has been changed to AIRINX (integral structure type).
specification
・Minimum boost pressure of 0.95k (320ps) can be achieved with genuine injectors and genuine fuel pump.
・By resetting the ECU and replacing the injectors and fuel pump, it is possible to achieve over 400ps. (Compatible output: 320-440ps)
Reference working time: 6.0~8.0H
[Product configuration]
Turbine body: TD06SH-20RX (1JZ exhaust housing, machined reinforced actuator)
Suction tube: Aluminum 80Φ
Compression tube: Aluminum 60Φ
Blow-off valve FVⅡ
AIRINX M172
Short parts set
<Compatibility with our own products>
| CODE | Product name | Conformity |
|---|---|---|
| 12010210 | GReddy Intercooler Kit JZX100 T-24F | Yes |
| 12010461 | GReddy Intercooler JZX100 Front SPEC-LS T-24E | Yes |
| 12010902 | GReddy Aluminum Intake Pipe Set JZX100 | No |
| 12013302 | GReddy Radiator Hose Kit JZX100 | Yes |
| 12013801 | GReddy Aluminum Radiator TW-R JZX100 | Yes |
| 12014416 | GReddy Oil Cooler Kit, Mobile Type, JZX100, 13 Stages | Yes |
| 12014627 | GReddy Oil Cooler Kit Standard Type JZX100 13 Stages | Yes |
| 12014907 | Oil Element Relocation Kit ES124 JZX100 | Yes |
| 13512110 | Pulley set JZX100 | Yes |
| 13911222 | Aluminum radiator pipe JZX100 | Yes |
[Compatible models] Toyota Mark II / Chaser / Cresta
Compatible Model: JZX100
Engine Model: 1JZ-GTE
Year: 96.09-01.10
TRUST CODE: 11510064
JAN CODE: 4991995664574
