[1JZ] GReddy Turbine Kit (TUNER KIT)

Product Features

The TD06SH20RX is an actuator-type turbine kit for vehicles equipped with the 1JZ (VVT-i).

By using the genuine shape exhaust housing, it can be bolted on to the genuine exhaust manifold and outlet.

The compressor cover is an S-cover of the same type as the wastegate specification, with an emphasis on intake efficiency.

This is a tuner kit that requires intake piping and ECU settings.
(Please make sure to have it installed by a professional shop with specialized knowledge.)

Precautions when using TD06SH-20RX

specification

・Minimum boost pressure of 0.95k (320hp) can be achieved with genuine injectors and genuine fuel pump (this may not be the case depending on the auxiliary equipment)

・Blow-off valve must be installed

・By resetting the ECU, replacing the injectors and fuel pump, it is possible to achieve over 400hp (at Boost 1.4K it produces approx. 425hp)

<< For the tuner kit, you will need to prepare and manufacture the following items separately. >>
Compression tube
, suction tube
, air cleaner
, hose, hose band
, blow-off valve

Product configuration:

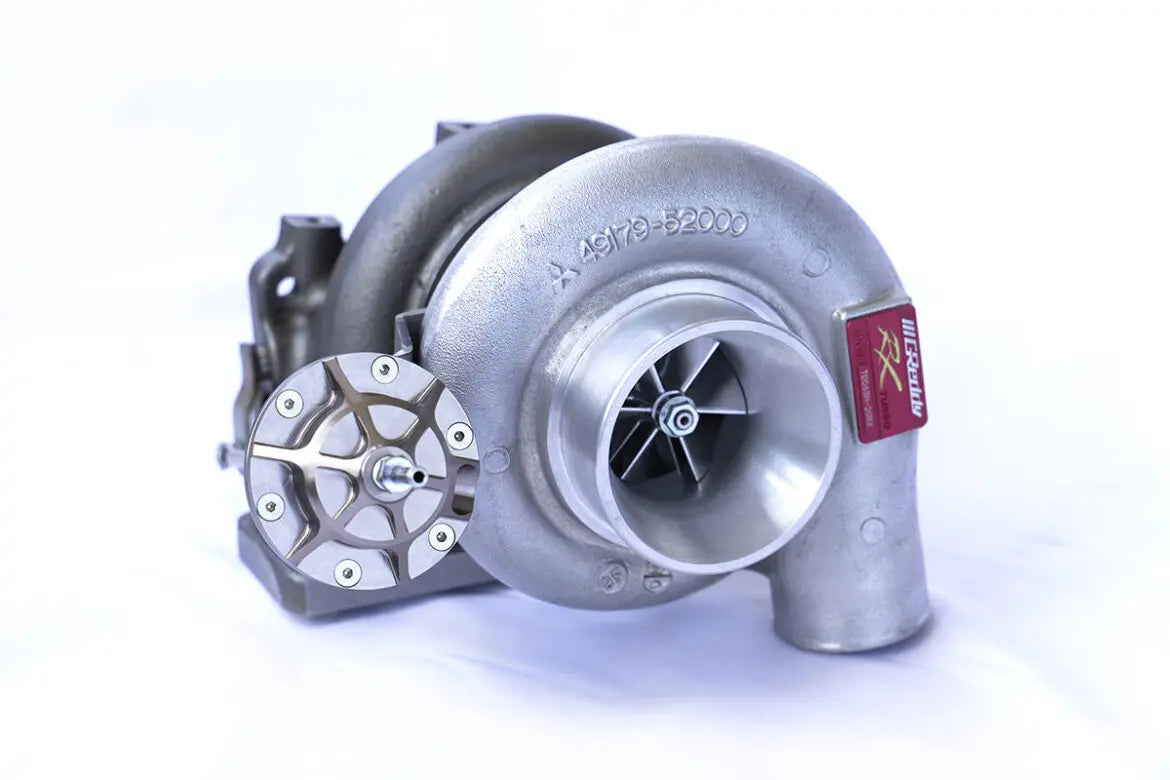

Turbine body (TD06SH-20RX, 1JZ dedicated exhaust housing, machined aluminum actuator)
, oil pressure hose
, oil return tube (for JZX100, processing may be required depending on the model),
　1 turbine side,
　1 engine side
, gasket: turbine IN, turbine OUT, exhaust manifold, oil return, copper washer

[Compatible E/G model] Vehicles equipped with 1JZ-GTE VVT-i engine

Year: 96.09～04.11

TRUST CODE: 11510097
JAN CODE: 4991995664567
