GReddy TRUST Japan Circuit spec center pipe ZN8/ZD8
GReddy TRUST Japan Circuit spec center pipe ZN8/ZD8
SKU: 10510608Regular price
£608.00
Regular price
Sale price
£608.00
Unit price
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability

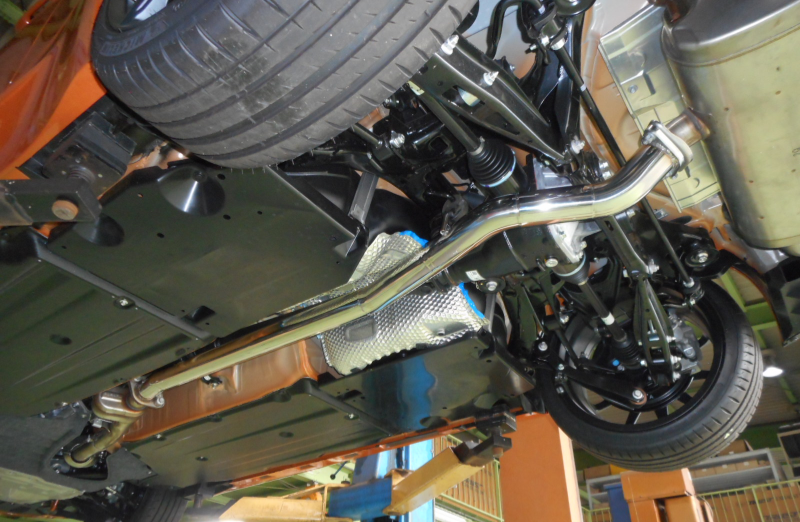

Circuit spec center pipe ZN8/ZD8
Product Features
●High exhaust efficiency circuit spec center pipe that cannot be used on public roads.
●Large diameter 70φ main pipe ensures a wide range of capacity to accommodate everything from normal engines to turbocharged tunes.
●Since the shape and position of the genuine flange are maintained, there is a high degree of freedom in muffler combinations.
specification
Parts for competition use only *Cannot be used on public roads as they do not comply with noise regulations
| Nearby exhaust noise | 97dB (right) ・ 94dB (left) / 5250rpm (Circuit spec center pipe and CS-GTS Ver.3) |
| 89dB(right)・89dB(left)/5250rpm (Circuit spec center pipe and genuine rear muffler) | |
| Genuine close exhaust noise | 83dB (left and right)/5250rpm |
| Minimum ground clearance | 129mm [Rear member lower pipe section] |
| Division/Aperture | 1 division / 70φ |
| Replacement part | Center muffler section |
| Material | SUS |
Estimated work time: 30 minutes
[Product configuration]
・Center pipe body
・1 gasket
・10 x 40mm bolt set
[Installation together with our own products]
| CODE | Product name | Simultaneous installation | |||||||||||||||||||||||||||
| 10110737 | GReddy Comfort Sports GTS ZN8/ZD8 | 〇 | |||||||||||||||||||||||||||
| 10110738 | GReddy Comfort Sports GTS ZN8/ZD8 VER.3 | 〇 | |||||||||||||||||||||||||||
| 10113250 | GReddy Power Extreme R LIGHT-S ZN8 | × | |||||||||||||||||||||||||||
| 10113301 | GReddy Power Extreme R ZN6, ZN8/ZC6, ZD8 | × | |||||||||||||||||||||||||||
| 10114300 | GReddy Power Extreme 3 ZN6, ZN8/ZC6, ZD8 | × | |||||||||||||||||||||||||||
| 10510602 | GReddy Overpipe ZN6,ZN8/ZC6,ZD8 | 〇 | |||||||||||||||||||||||||||
| 10510603 | GReddy Circuit Spec Front Pipe ZN6,ZN8/ZC6,ZD8 | 〇 | |||||||||||||||||||||||||||
| 10510607 | GReddy Circuit Spec Exhaust Manifold ZN6,ZN8/ZC6,ZD8 | 〇 | |||||||||||||||||||||||||||
| 10611002 | GReddy Sports Catalyzer ZN6, ZN8/ZC6, ZD8 Catalyst unit only | 〇 | |||||||||||||||||||||||||||
| 10612002 | GReddy Sports Catalyzer Exhaust Manifold ZN6,ZN8/ZC6,ZD8 | 〇 | |||||||||||||||||||||||||||
| 11510414 | GReddy Bolt-on Turbine Kit ZN8/ZD8 T620Z ACT | 〇 | |||||||||||||||||||||||||||
| 11510415 | GReddy Bolt-on Turbine Kit ZN8/ZD8 T620Z ACT Catalyst Straight Specification | 〇 | |||||||||||||||||||||||||||
[Compatible models] Toyota GR86 / Subaru BRZ
Vehicle model: 3BA-ZN8/3BA-ZD8
Engine model:
FA24 Year : 2021.10～/2021.08～
*Parts exclusively for competition
TRUST CODE: 10510608
JAN CODE: 4991995857396
