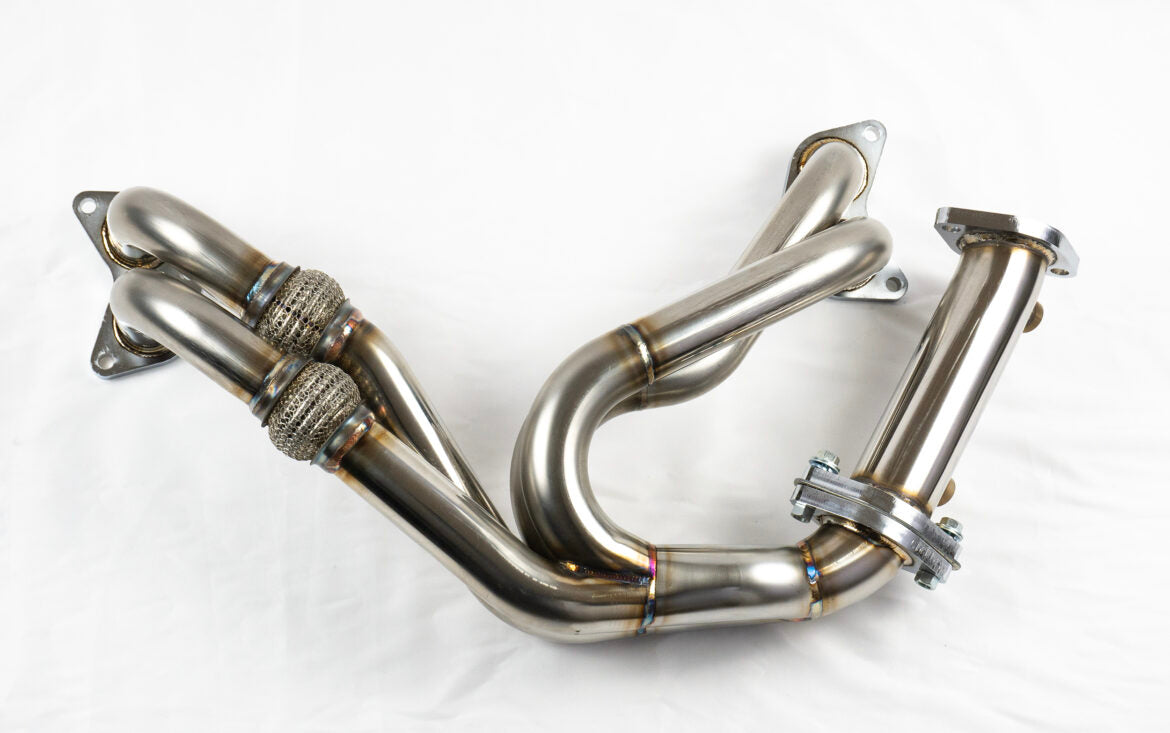

GReddy TRUST Japan Circuit Spec exhaust manifold for Toyota GT86 ZN6 and GR86 ZN8, Subaru BRZ, 10510607

GReddy TRUST Japan Circuit Spec exhaust manifold for Toyota GT86 ZN6 and GR86 ZN8, Subaru BRZ, 10510607

£1,474.00
£1,474.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

10510607

Circuit use stainless exhaust manifold with a straight catalytic converter for the Toyota GT86 and GR86 and Subaru BRZ, based on the Sports Catalyzer manifold.

Fitment

Make Model Chassis Engine Years
Toyota GT86 (Toyota 86 in Japan) ZN6 FA20 Apr 2012 on
Toyota GR86 ZN8 FA24 Oct 2021 on
Subaru BRZ ZC6 FA20 Mar 2012 on
Subaru BRZ ZD8 FA24 Aug 2021 on

Specifications

Part number 10510607
Made by TRUST, Japan
Use Competition only, not for public roads
Sections 2
Main pipe diameter 42 mm to 45 mm to 50 mm to 60 mm
Replaces First catalyst part (integrated with exhaust manifold)
Material Stainless steel, plated flange
Noise, standard exhaust 82 dB at 5,250 rpm
Noise, GReddy exhaust 94 / 94 dB at 5,250 rpm (right / left, with Power Extreme 3)
Weight, standard part 9.6 kg
Weight, this part 6.0 kg (manifold and catalyzer)
Estimated fitting time 2.5 hours

Notes: For competition use only, not for use on public roads. Fits all grades, manual and automatic. After fitting, the engine check lamp (catalyst deterioration) may come on, so have it fitted and the ECU set by a specialist shop. Supplied with the manifold body, catalyst body, two 60 mm gaskets, two dedicated gaskets and four 10 x 40 mm bolts.

Circuit Spec exhaust manifold
