GReddy Bolt-on Turbo Kit for JC74W (MT)

Product Features

• This bolt-on turbo kit features a TF035 turbine, perfectly matched for the K15B engine.
• It can be installed on a standard engine and achieves increased power and torque across the entire RPM range.

specification

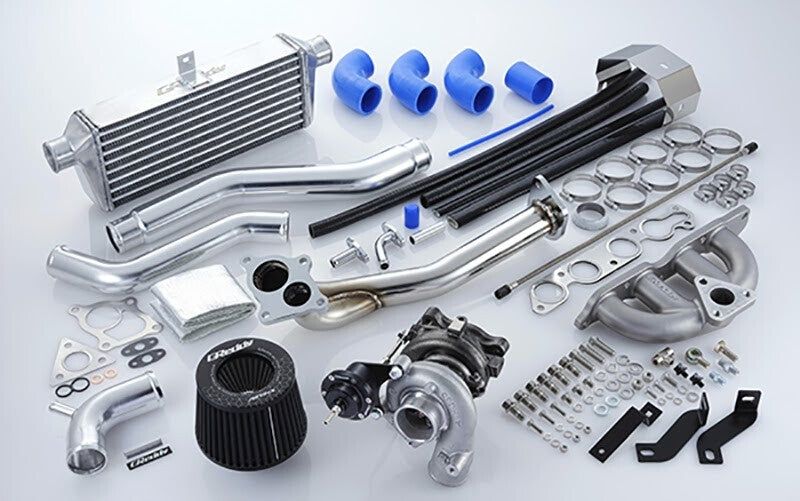

Kit contents with catalytic converter

• Turbine TF035HL-14GK 6 cm²
• SUS Lost Wax Exhaust Manifold
• SUS 50φ F-pipe with catalytic converter
• Intercooler TYPE41 (inside the front grille)
• AIRINX Size S
• Compression tube, aluminum, 50φ-60φ
• Aluminum suction tube, 50mm diameter
• Other small parts set

Catalyzer-less kit contents

• Turbine TF035 14GK 6㎠
• SUS Lost Wax Exhaust Manifold
• SUS 50φ F pipe
• Intercooler TYPE41 (inside the front grille)
• AIRINX Size S
• Compression tube, aluminum, 50φ-60φ
• Aluminum suction tube, 50mm diameter
• Other small parts set

Precautions

◆Low viscosity oil cannot be used (0W-16, 0W-20). SAE viscosity 5W-30 is recommended
. ◆Drilling is required in the genuine oil pan (simultaneous installation of the genuine oil pan cover is not possible).
◆Genuine washer tank cannot be installed.
◆Spark plugs must be replaced with those equivalent to heat range 8.
◆Genuine catalytic converter cannot be installed.

*ECU reprogramming is required.
*Oil temperature management is essential after installing the turbo kit. Depending on usage conditions, we recommend installing an oil temperature gauge and oil cooler.

[Compatible Vehicles] Suzuki Jimny Nomad (Manual Transmission)

Engine type: K15B
Vehicle type: 3BA-JC74W
Year: April 2025 (Reiwa 7) onwards

*Not compatible with models released in January 2026 and later (Model 2 and later).
