Forged Piston Kit by OS Giken F6A

Product Features

⚫︎It has been created by refining its "high sealing performance" that does not let combustion pressure escape, "low friction" that allows smooth up and down movement, and "high durability" that allows piston heat to escape.

⚫︎The top land has three grooves, and the labyrinth effect also enhances sealing, making this a forged piston that is suitable for high revolutions and high power output. (Recommended piston clearance: 0.05mm)

SOHC

DOHC

specification

High silicon type forged aluminum alloy A4032 (Made in Japan)

The crown shape is the same as the genuine product, the compression ratio is the same as the genuine product, and the total displacement is set to 659.997cc, which is within the limits for light vehicles. *Code: 13596602 is excluded.

GReddy by OS GIKEN logo and serial number laser marked

[Design values] Weight: 180g Pin offset: 0.5mm Crown volume: 8.48cc (SOHC), 11.38cc (DOHC)

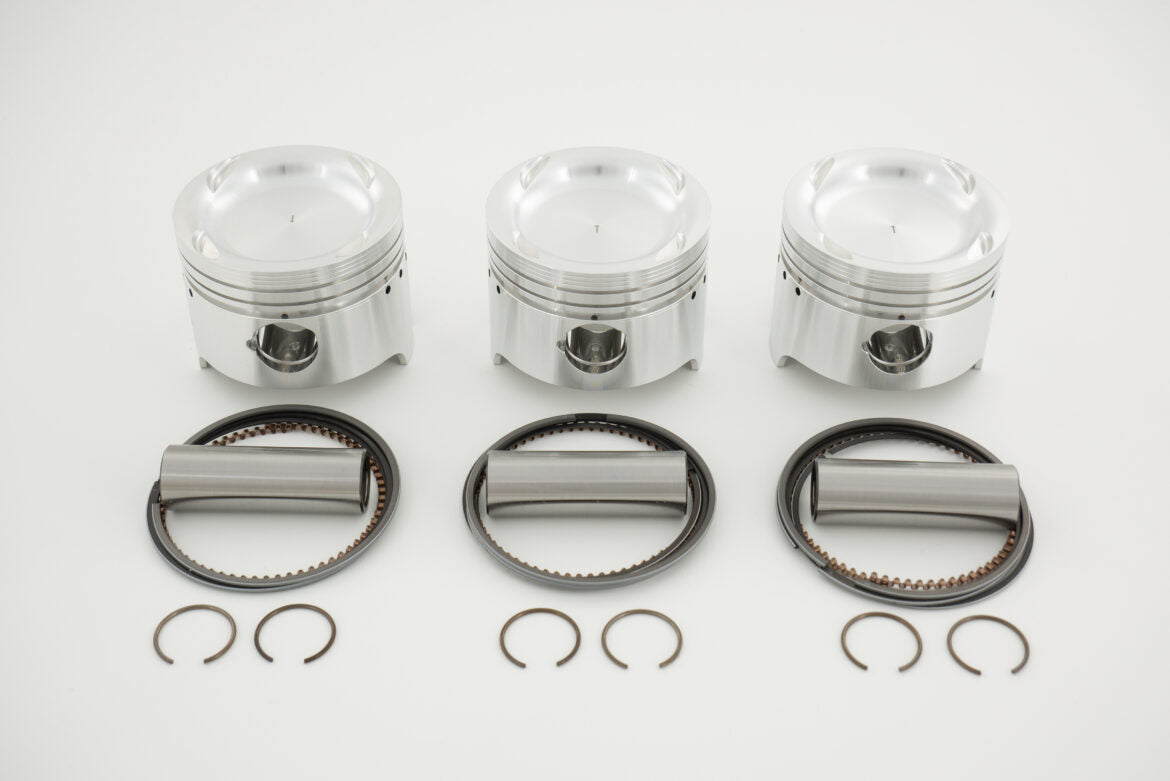

Product Configuration

Piston body
Piston ring (Ring size T: 1.0 S: 1.2 O: 2.0)
Piston
pin Circlip

Compatible engine model

F6A (DOHC-4 valve) turbo
F6A (SOHC-2 valve) turbo

SOHC-2 valve 65.14Φ

TRUST CODE: 13596601
JAN CODE: 4991995664901

SOHC-2 valve 65.5Φ

TRUST CODE: 13596602
JAN CODE: 4991995664918

DOHC-4 valve 65.14Φ

TRUST CODE: 13596603
JAN CODE: 4991995664925
