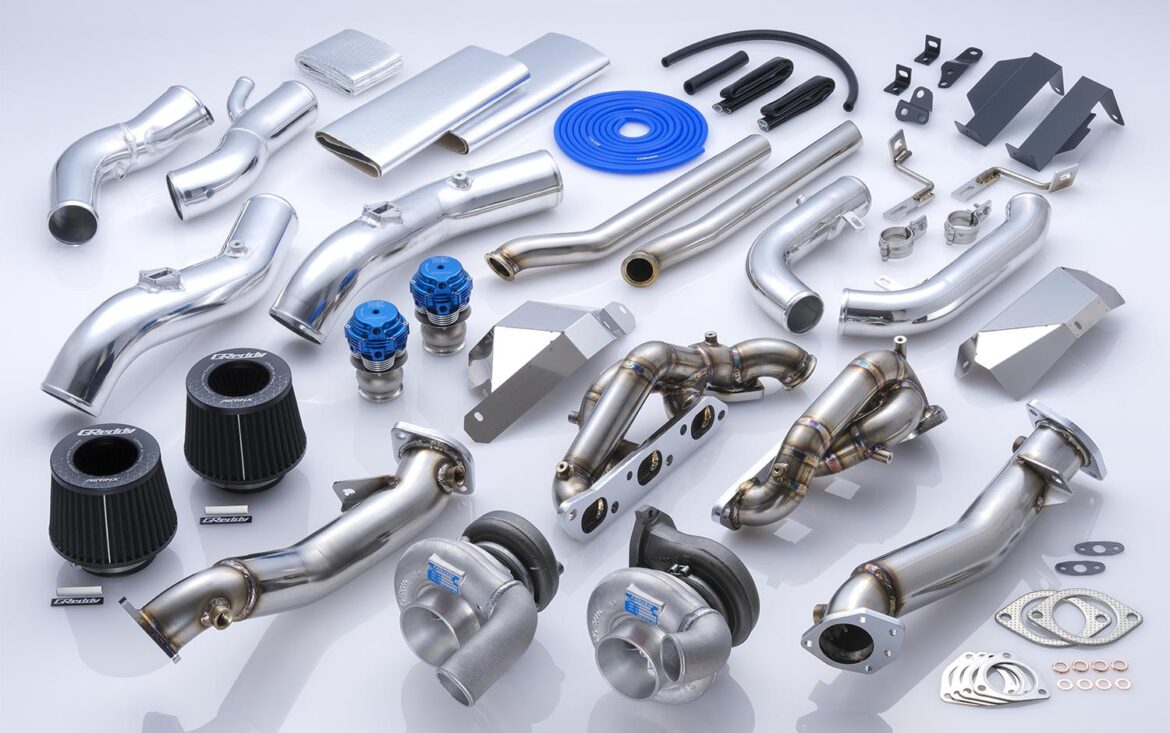

GReddy TRUST Japan GReddy Turbine Kit for R35 RX1200 GTR - Wastegate (Open)
GReddy TRUST Japan GReddy Turbine Kit for R35 RX1200 GTR - Wastegate (Open)
SKU: 11520108Couldn't load pickup availability
-
Product Features
◆This turbine kit delivers the highest maximum output of the GReddyT/K R35 series, delivering a maximum of 1200hp.
◆Choose from two kit settings: wastegate return or atmospheric release, depending on your driving stage.
◆The exhaust manifold uses a crack-resistant, 3mm-thick, 48φ stainless steel elbow welded type, achieving a significant weight reduction of approximately 6.9kg for both sides.
◆The wastegate valve uses a TiAL 38φ V-Band type, and the optimized valve diameter eliminates the drop after intercept
, stabilizing boost. ◆The compact wastegate valve allows for flywheel housing replacement without removing the exhaust manifold, improving maintenance.
◆Multiple wastegate springs are included, allowing you to select the best rate to match your desired boost.
return
open
specification
◆Turbine TD06SH-25G-C 10cm2 (20G cover specification) TWIN
◆EX manifold 48φ SUS elbow welded.
◆Front pipe SUS60φ-70φ x 2
◆W/G TiAL 38φ V-Band type.
◆Suction tube Aluminum 70φ (buffed finish)
◆Compression tube Aluminum 60φ x 2 (buffed finish)
◆AIRINX AY-S x 2
◆Wastegate release pipe SUS42.7φ (release kit only)Precautions
- The original first catalyst cannot be installed, but the second catalyst can be installed.
- To install this kit, you will need to also install the separately sold GReddy Aluminum Intake Pipe Set for the R35GTR Suction Kit. (CODE: 12020942)
- A genuine exhaust manifold gasket is required separately.
GReddy Turbine Kit for R35 RX1200 Wastegate (Return)
Made-to-order
TRUST code: 11520107
JAN code: 4991995665373GReddy Turbine Kit for R35 RX1200 Wastegate (Open)
Made-to-order
TRUST code: 11520108
JAN code: 4991995665380
