GReddy TRUST Japan Twin turbo kit, TD06SH 20G, 8.0 cm² housing, wastegate open for Nissan GT-R R35 VR38DETT, 11520106

GReddy TRUST Japan Twin turbo kit, TD06SH 20G, 8.0 cm² housing, wastegate open for Nissan GT-R R35 VR38DETT, 11520106

£9,792.00
£9,792.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

11520106

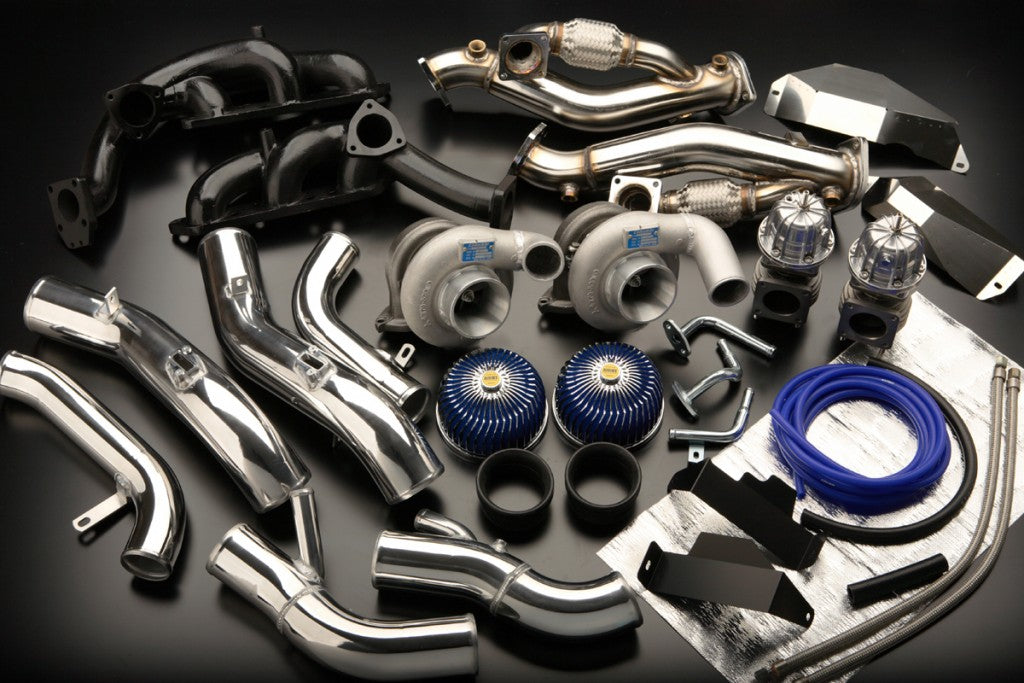

Twin turbo kit for the Nissan GT-R R35 with the VR38DETT engine, built around two TD06SH 20G turbos with 8.0 cm² turbine housings and TiAL 38 mm wastegates, wastegate open. It includes the exhaust manifold, front tubes, Airinx air filters and aluminium suction and compression tubes.

Fitment

Make Model Chassis Engine Years
Nissan GT-R R35 VR38DETT Dec 2007 on

Specifications

Part number 11520106
Made by TRUST, Japan
Turbo TD06SH 20G
Turbine housing area 8.0 cm²
Layout Twin turbo
Wastegate TiAL 38 mm, V-band
Wastegate outlet Open
Exhaust manifold Stainless steel, 48 mm, elbow welded
Front tube Stainless steel, 60 mm to 70 mm, x 2
Air filter Airinx AY-S, x 2
Suction tube 70 mm to 80 mm, x 2
Compression tube 60 mm, x 2
Genuine catalytic converter First cannot be fitted, second can be fitted

Notes: Fitting needs the GReddy aluminium intake pipe set (R35 GT-R suction kit, sold separately). A genuine exhaust manifold gasket is needed separately. The wastegate is the open specification.

Fitment help: call +44 20 3388 8444 or contact us.
